20 KW Standby Generator

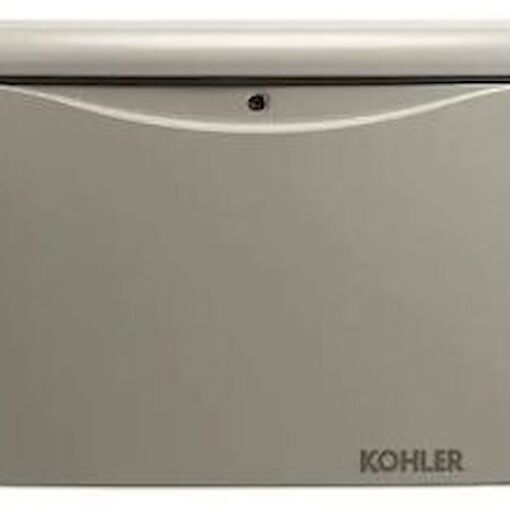

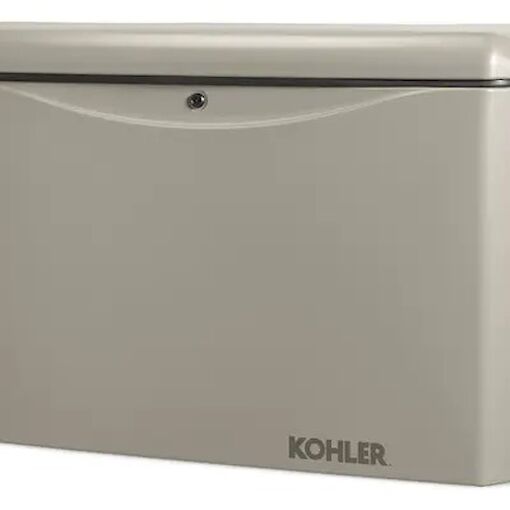

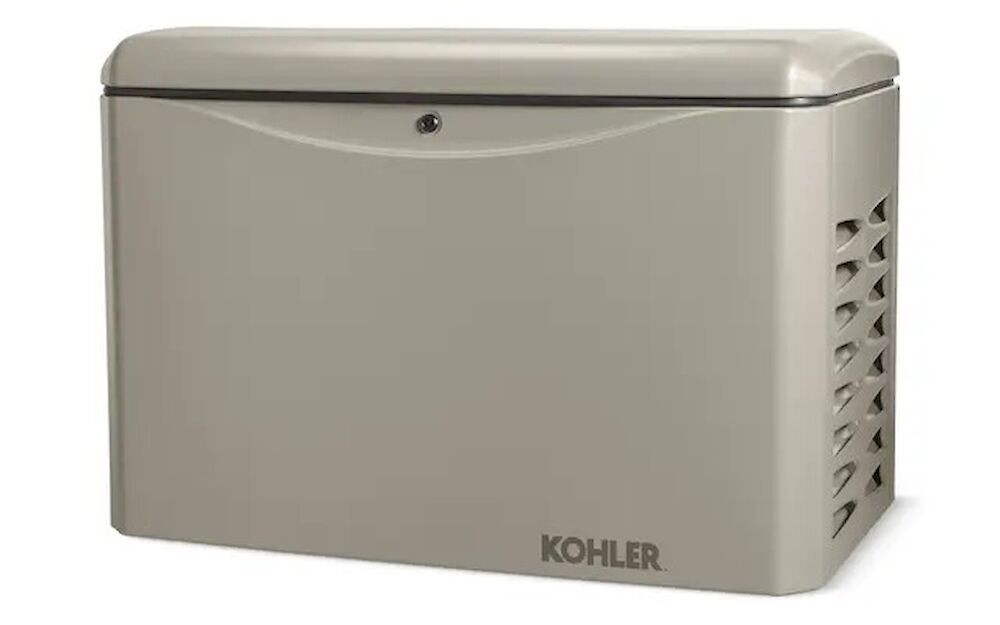

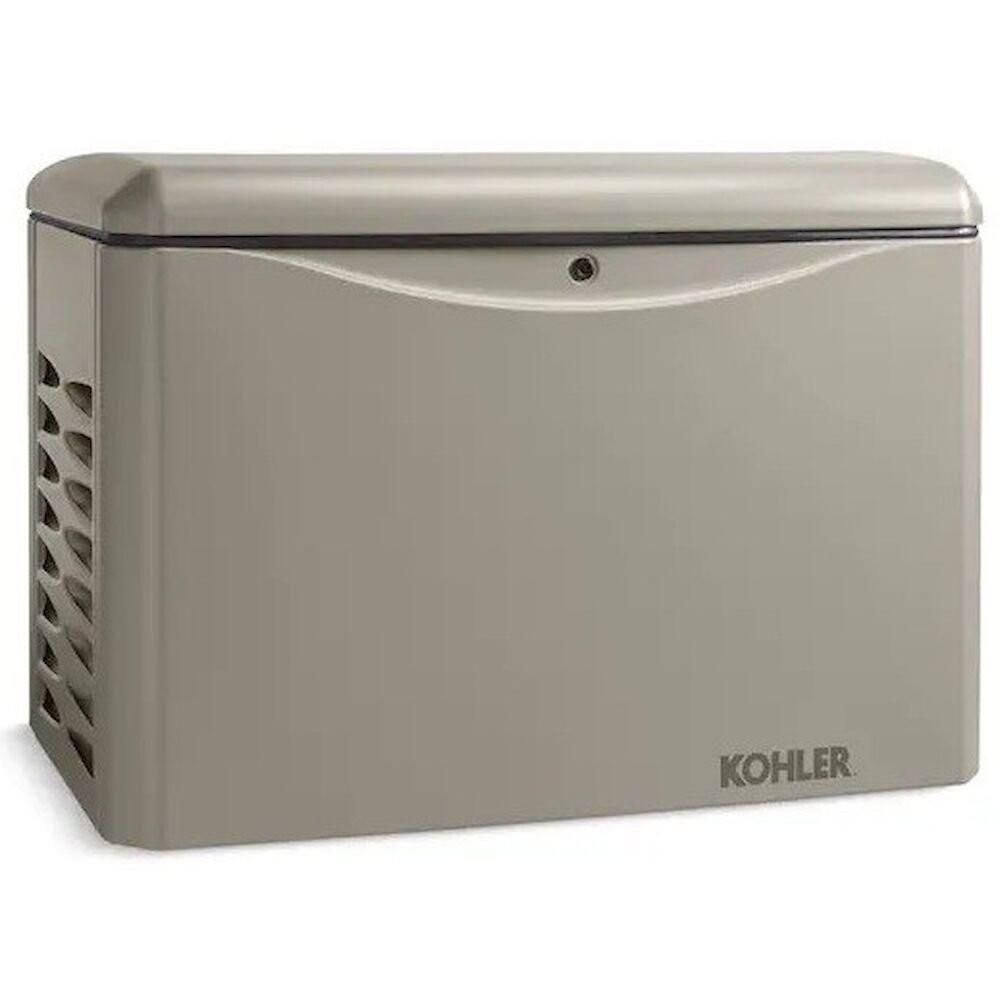

This Kohler 20 RCA generator is a high-performance standby power system designed for residential or small business use. It is a multi-fuel unit that can operate on either Natural Gas or LPG.
Key Features and Benefits
-
High-Quality Power: Protects sensitive electronics with advanced voltage and frequency regulation and ultra-low harmonic distortion.
-
Reliable Performance: Features a Kohler Command PRO engine with hydraulic valve lifters, eliminating the need for routine valve adjustments.
-
Durable Enclosure: The aluminum enclosure is corrosion-resistant and allows for installation as close as 18 inches from your home.
-
Advanced Control: The RDC2 Controller manages both the generator and the optional transfer switch, and it includes a built-in Energy Management System for remote monitoring.
-
Quiet Operation: Average sound levels are 66 dB(A) during weekly exercises and 70 dB(A) during normal operation.
Technical Specifications
| Feature | Details |
| Power Output (60 Hz) | 20 kW (LPG) / 18 kW (Natural Gas) |
| Engine Type | 4-Cycle, V-2, 999 cc |
| Warranty | Standard 5-year / 2000-hour limited warranty (parts, labor, and travel) |
| Dimensions | 47×26.0×32.3 inches (L×W×H) |
Installation & Maintenance
-
Outdoor Only: This unit is designed strictly for outdoor installation.Ease of
-
Service: Enclosure panels can be removed without tools for easy maintenance access.
-
Mounting: The sturdy aluminum base can be mounted on gravel or a concrete pad.
-
Fuel Flexibility: The system is field-convertible between natural gas and LPG.
Available Options
-
Cold Weather Packages: Recommended for temperatures below 0∘C (32°F) to ensure reliable starting.
-
PowerSync®: Allows you to parallel two 20kW units for double the power capacity.
